VIDEO-STREAMING

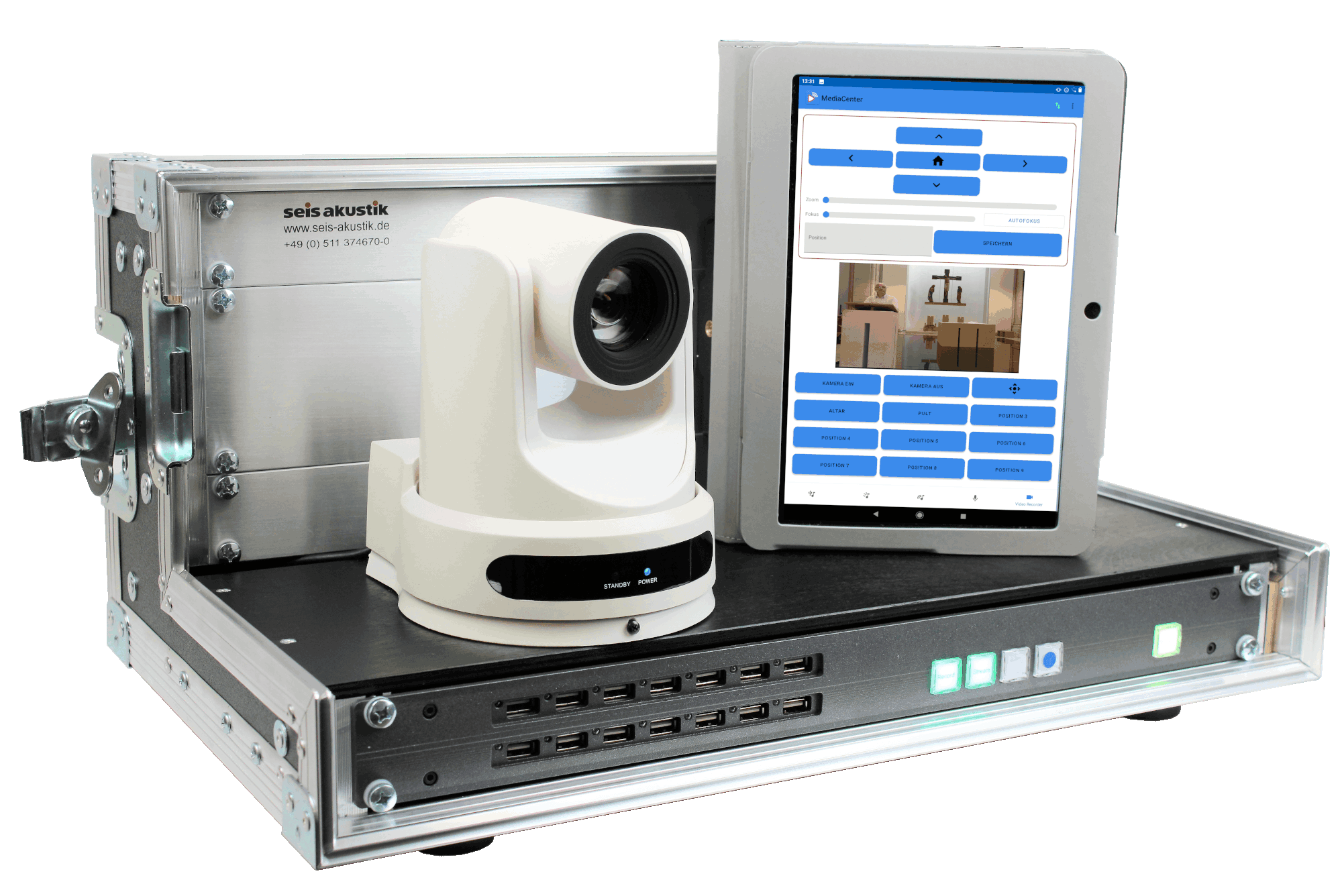

Video solution Media Center 14

Advantage:
• Easy handling
• High operational reliability
• 9 camera viewing angles and live control
• LIVE streaming and recording
• High resolution and light sensitivity
• Live co-view image on tablet
• Buttons and tablet control, time control
Discription:
With the MC14 camera system it is possible, without technical background knowledge, to operate the transmission and recording with a controllable camera LIVE via a tablet. The app shows clear buttons for the different camera preset image sections with the live preview image of the transmission. Everything on one screen! The camera settings can be easily controlled and saved via the tablet. Also it is possible to start and stop the live stream and recording. The operation can be done wirelessly from anywhere in the church via a WLAN radio network or by one button each for streaming and recording on the central device. A timer enables automatic operation.
Technical spot:
Mobile for several locations
Version:
MC14-Streaming/Recording
Product-ID:
Detailed advice required

Video solution IVideoApp

Advantage:
• Easy Handling
• High operational reliability
• 1-3 cameras with camera angle and live control
• Notebook integration (texts, images, movies)
• LIVE streaming and recording
• High resolution and light sensitivity of the camera
• Live preview and co-display image on tablet
Discription:

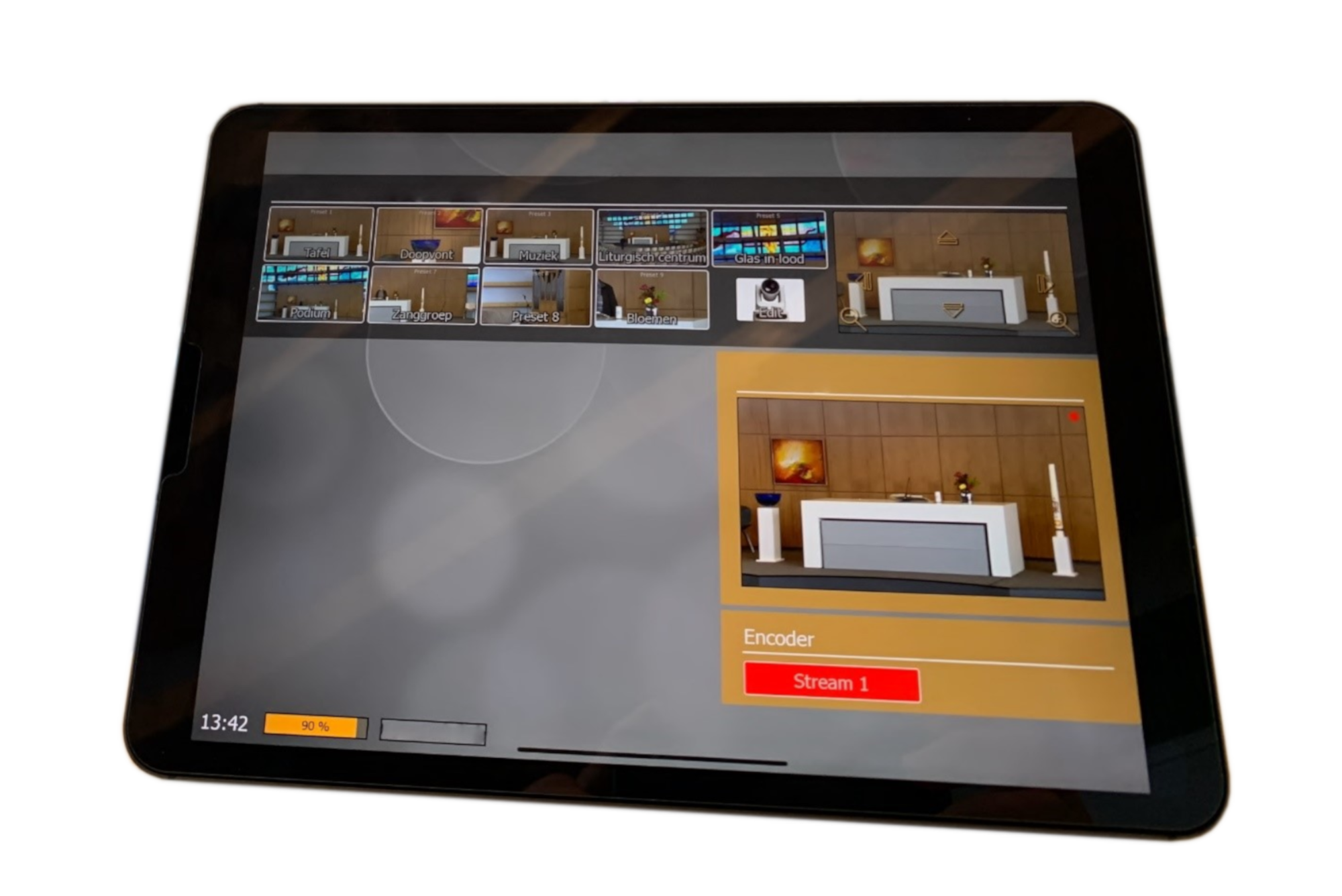

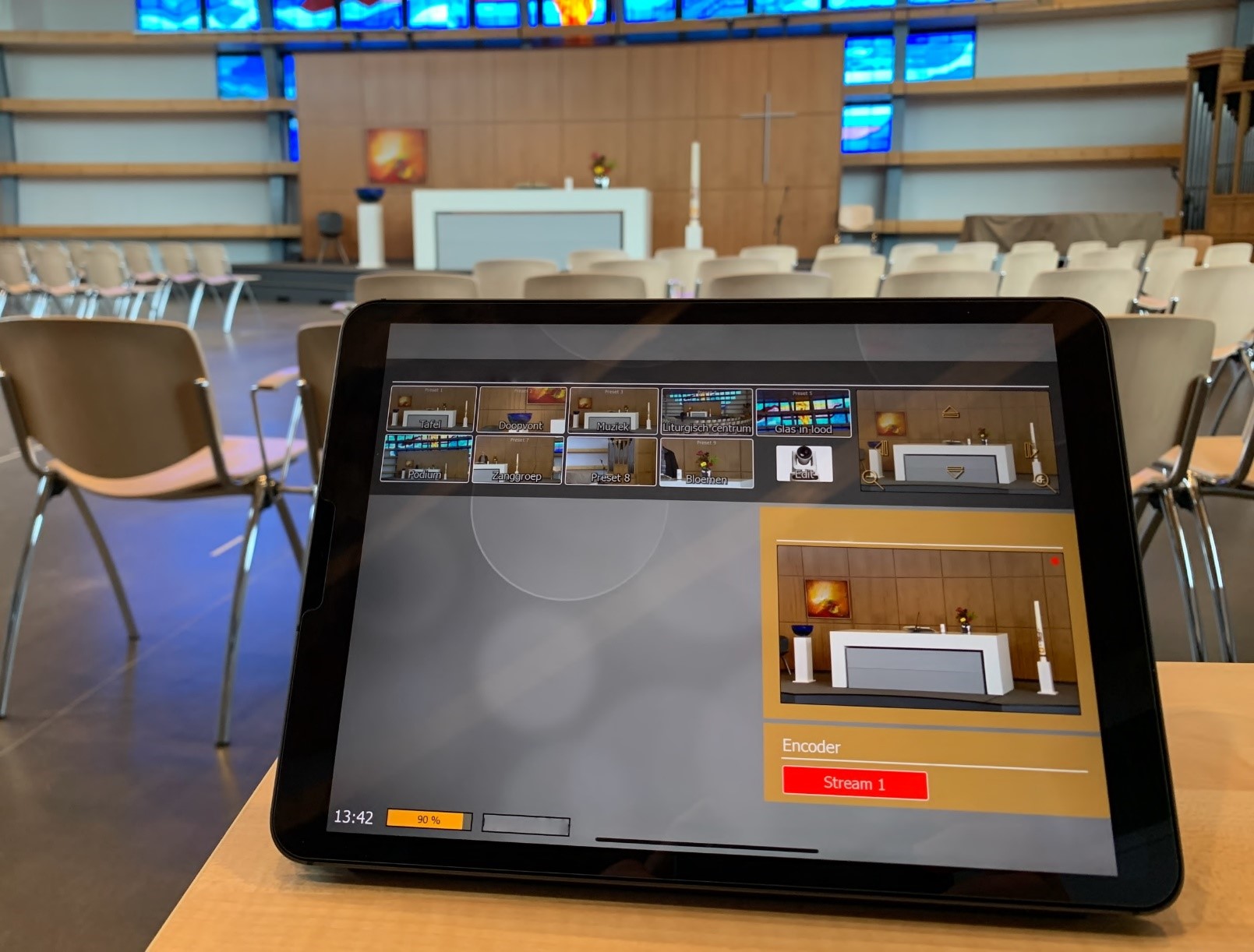

With the IVideo app solution, it is possible to operate 3 controllable cameras, 1 PC (for presentation) and the video mixer LIVE via a tablet without any technical background knowledge. The app clearly displays photo buttons from the set camera preset image sections, the live preview images from the cameras and the broadcast image of the transmission. All on one screen! The cameras can be easily controlled from the tablet. It is also possible to start and stop the live stream. Fade in texts into the images or present whole computer content. You can also decide separately in the app what will be streamed to the internet and what will be projected in the church. The control can be done wirelessly from anywhere in the church via a WLAN radio network.
Technical spot:
True multi-camera / computer image control
Version:
IVideoApp-SET with 1/2/3 Cameras
Product-ID:
Detailed advice required

Video solution EDS-Software

Advantage:
• Easy Handling
• High operational reliability
• 1-7 cameras with 9 camera angles each and live control
• Notebook input (texts,images,movies)
• LIVE streaming and recording
• High resolution and light sensitivity of camera
• Control room with live preview/broadcast images and sound control
Discription:

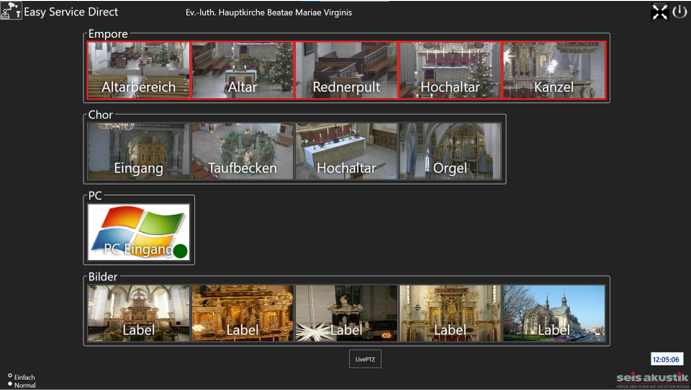

With the EPS control room software, it is possible to operate up to 7 sources (controllable cameras or computers) and the video mixer LIVE via a tablet without any technical background knowledge. The app has three control surfaces (preset control only , simple control and technician full access). Clear photo buttons with camera preset image-sections control camera movement and image switching between cameras or the computer. In Simple Control, you can move the cameras live. In technician mode, many TV production functions are available. Picture switching effects, text overlay and picture in picture function are among the useful uses. You can also decide separately in the app what will be streamed to the Internet and what will be projected in the church.
Technical spot:
3-step TV control with full access
Version:
EPS-SET with 1/2/3/4/5/6/7 Cameras
Product-ID:
Detailed advice required

Streaming platform - UnserGottesdienst.de

Advantage:
• Data protection compliant
• High operational reliability
• Easy Handling
• Time-shifted viewing of recent broadcasts
• LIVE streaming and recording
• No commercials, no interruptions
• Cost control at any time
Discription:
Bring your church service into people's homes. With KirchenTV it is possible for everyone to experience the service from home... Each church has its individual page on Unsergottesdienst.de. Here the services are broadcast live. Earlier broadcasts can also be viewed directly. These can be found simply by entering, for example, pastor, liturgy or the theme of the service. With a subscription to Unsergottesdienst.de, you can easily record and manage all broadcasts. The professional way to meet the requirements of data protection and operational security. Without advertising, without interruptions and without cumbersome controls or administrative tasks.
Technical spot:
Data protection compliant and operationally secure
Version:
Platform with 150/300/600 visitors
Product-ID:
Detailed advice required

Organist/Conductor Camera Solution

Advantage:
• Lowest latency (time offset)
• Conductor and organ tact compliant
• Easy Handling
• Multiple cameras and monitor positions possible
• Image selection possible for each monitor
Discription:
The monitor system for conductors and organists presents extreme requirements in terms of time-synchronous image display. Modern digital technology results in time-delayed image display due to the processing time of the large amount of data. Working LIVE according to the baton is impossible. An organist cannot follow the conductor's lead from the altar area. He is always too late. Our system is based on an absolute minimization of this effect with selected components. Our high-quality special installations achieve a delay of only a few milliseconds.
Technical spot:
Almost latency-free (time shifting)
Version:
Depending on number of sites
Product-ID:
Detailed advice required

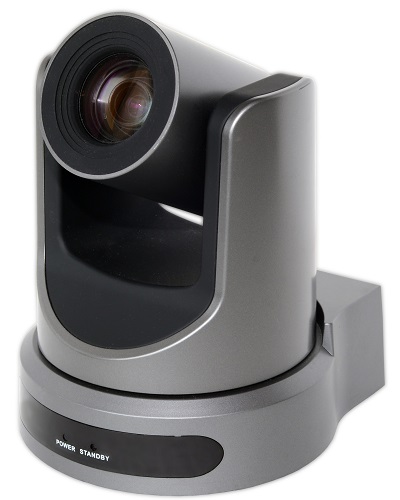

Digital-PTZ-Camera S-VHD 1080-W

Discription:
The modern 3G-SDI live streaming PTZ (Pan, Tilt, Zoom) cameras are suitable for professional video productions in Full HD. They are equipped with high-quality lenses and offer flexible live streaming and recording options. This makes them ideally suited for for sports events, conferences, lecture halls, concerts and applications in companies.
Functions

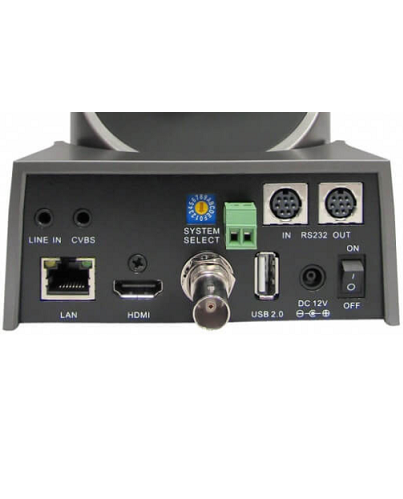

- Panasonic 1/2.7" HD CMOS Sensor - 3G-SDI High Definition Output - H.264, H.265, & MJPEG IP Streaming Output (Dual Stream) - AAC audio encoding over IP - High light sensitivity - 1920x1080p HD resolutions with up to to 60 images via SDI - 3G-SDI, HDMI and IP Streaming LIVE - Tripod thread - PoE (Power over Ethernet) or 12VDC - RTMP, RTSP - Preset control
Technical data
Video sensor: 1/2.7" CMOS, 2.12 megapixels Frame rate: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25 Focal length: 20x, F3.5mm-42.3mm, F1.8-F2.8 Zoom: 12x optical Minimum illumination: 0.5 lux at F1.8 SNR: >55 dB Vertical Flip & Mirror: Supported Horizontal viewing angle: 3.36° to 72.5 Vertical viewing angle: 3.9° to 44.8 Pivoting range: +/- 170 Tilt range: +90° to -30 Input voltage: 12V DC or PoE 802.3af Dimensions: 142 x 164 x 169 mm (WxHxD)
Technical spot:
Sports events, conferences, lecture halls, concerts and applications in companies.
Version:
White/Grey
Product-ID:
9316/9317

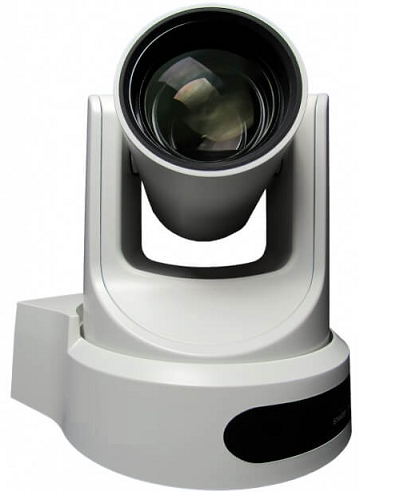

Digital-PTZ-Camera S-VHD 1080-NDI

Advantage:
• FullHD resolution
• Panasonic image sensor
• Fast Tamron lens
• 99 preset memories
• NDI/SDI/HDMI output
• Dual Streaming
• PoE
Discription:
The modern 3G-SDI live streaming PTZ (Pan, Tilt, Zoom) camera is suitable for professional video productions in Full HD. The high light sensitivity enables high image quality even in poorly lit environments. It is optionally equipped with a high-quality 12x, 20x or 30x lens and offers flexible live streaming options. This makes it ideal for live broadcasts of church services, sporting events, conferences and auditorium broadcasts. Depending on the infrastructure, an HDMI, SDI or LAN network transmission system can be used. The camera is fully controllable via network and supports the NDI format.
Technical spot:
High light sensitivity with NDI structure
Version:
Color: white/gray Lens: 12x/20x/30x
Product-ID:
Detailed advice required

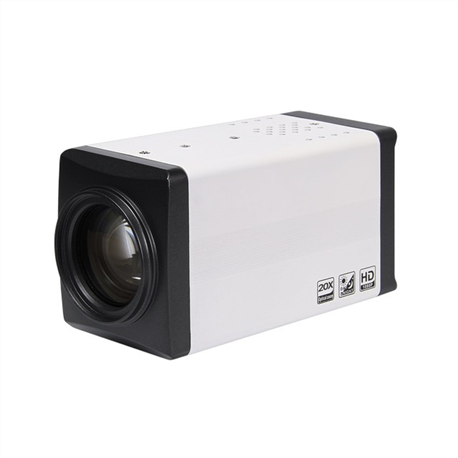

Digital camera S-J2600

Discription:
The S-J2600 is a 1080p camera with 20x optical zoom for HD recordings in wide angle and over long distances. This Camera supports 3G-SDI, as well as IP streaming (H.264, H.265, &) MJPEG). The camera is ideally suited for the transmission of high Definition of video signals for broadcast, recording or for video conferencing.
Functions
- Panasonic 1/2.7" HD CMOS Sensor - 3G-SDI High Definition Output - H.264, H.265, & MJPEG IP Streaming Output (Dual Stream) - AAC audio encoding over IP - High light sensitivity - 1920x1080p HD resolutions with up to to 60 images via SDI - 3G-SDI and IP Streaming - Tripod thread - PoE (Poewer over Ethernet) or 12VDC - RTMP, RTSP
Technical data
Video sensor: 1/2.7" CMOS, 2.12 megapixels Frame rate: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25 Focal length: 20x, F4.42mm-88.5mm, F1.8-F2.8 Zoom: 20x optical Minimum illumination: 0.5 lux at F1.8 SNR: >55 dB Vertical Flip & Mirror: Supported Horizontal viewing angle: 3.36° to 60.7 Vertical viewing angle: 1.89° to 34.1 Input voltage: 12V DC or PoE 802.3af Dimensions: 60.9 x 144.7 x 76.2 mm (WxHxD)
Technical spot:
Broadcast, recording or for video conferences
Version:
White
Product-ID:
15335
