amplifier systems

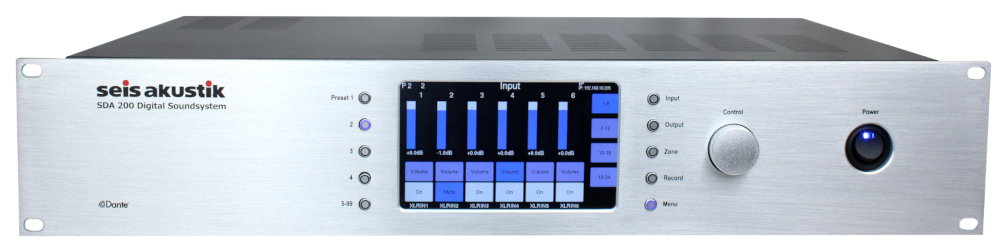

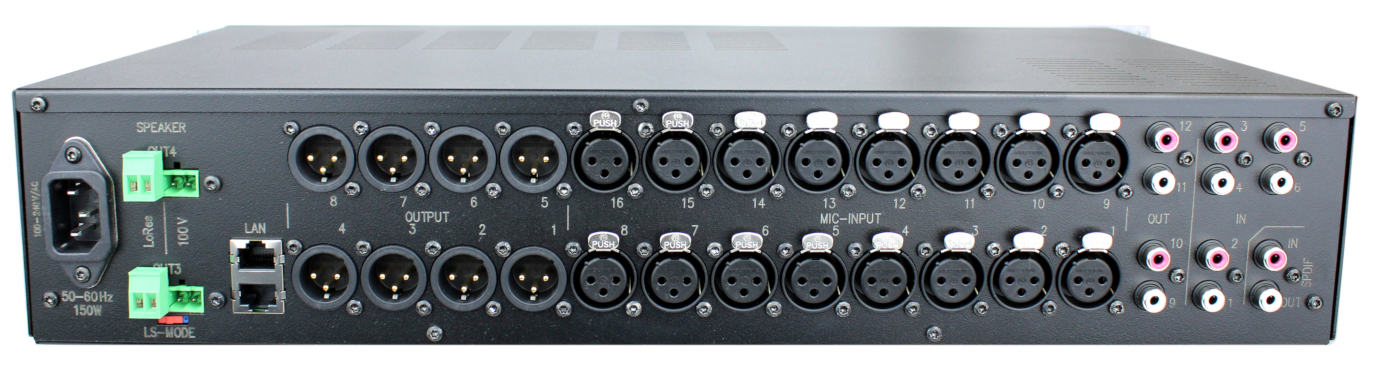

SDA200 DSP-matrix amplifier

Discription:

Digital microphone mixing system of the most modern design with Dante network structure and 2 digital power amplifiers, The processor-controlled device of the latest generation represents the optimal synthesis of excellent transmission quality, minimum operating effort and maximum ease of use. complete scenarios - LCD colour display, automatic fault diagnosis, automatic audio mixing between speech microphones, vocals, organ/music signals and room ambience microphones for recording and Internet transmission, volume auto-microphone, automatic mixing, feedback suppression - 24 input channels ,12 output channels, Network-capable, Dante audio network option, streaming to the Internet, remote control for fast, direct help from our service point, WLan prepared. Optionally available: various remote controls.

Field(s) of use:

...

Version:

Grey

Product-ID:

15621

SDA100 DSP-matrix amplifier

Discription:

Digital microphone mixing system of the most modern design with Dante network structure and 2 digital power amplifiers, The processor-controlled device of the latest generation represents the optimal synthesis of excellent transmission quality, minimum operating effort and maximum ease of use. complete scenarios - LCD colour display, automatic fault diagnosis, automatic audio mixing between speech microphones, vocals, organ/music signals and room ambience microphones for recording and Internet transmission, volume auto-microphone, automatic mixing, feedback suppression - 12 input channels ,6 output channels, Network-capable, Dante audio network option, streaming to the Internet, remote control for fast, direct help from our service point, WLan prepared. Optionally available: various remote controls.

Field(s) of use:

...

Version:

...

Product-ID:

15620

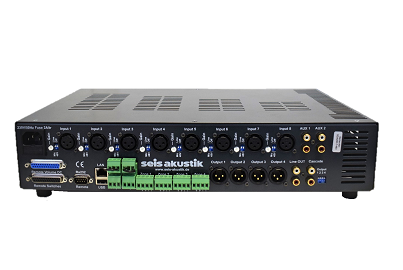

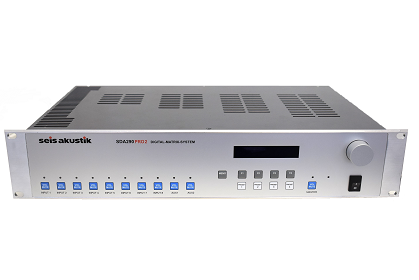

SDA290 PRO2 DSP-matrix mixer

Discription:

Digital microphone mixing system of the latest design with 2 signal processors (DSPs) and stereo operation. 2 integrated digital power amplifiers with 150W output each. The processor-controlled device of the latest generation represents the optimal synthesis of excellent transmission quality, minimum operating effort and maximum ease of use. In addition to the technical advantage, it offers a basic equipment in a class of its own: presets for saving individual parameters or LCD-display, 2 lines, illuminated - automatic malfunction diagnosis, malfunction is indicated on the display - diagnostic self-test of the unit when switched on - 12 input channels Mic/Line switchable with preamplifier - input channel on/off button (mute) for each channel separately channel-related sound adjustment for treble, midrange and bass (digital) - balanced microphone inputs - 4 x 20 band parametric equalizer with variable quality - phantom power, switchable (48V) (digital) - 4 level output balanced - master output level control (digital) - transformer balanced level output +6 dB - 4 switchable loudspeaker outputs (digital) - electronic delay-free microphone speech control - automatic volume control, (limiter/compressor) - electronic feedback suppression - 4 compartment delay/runtime device 0 - 200 ms - RS232 bidirectional interface, for operation or remote control of the device functions. Network-compatible incl. WLan and IR remote control prepared. Optional available: Remote control for all important functions - Windows software.

Field(s) of use:

...

Version:

Silver/White

Product-ID:

13884

SDA-TAB Windows/Android Tablet

Discription:

Operate your system with the iPad! Seis Akustik designs, programs and installs transmission systems with a modern touch panel operating concept that are specially adapted to the room. technology: 12/6 DSP matrix mixer, 12 inputs, 6 outputs, preset storage, easiest operation via multi-function knobs, 8 input compressors, 2 output compressors, 16 parametric equalizers, 6 delays, 4 busses, output routing, 2 digital power amplifiers, room control system, RS232, LAN, USB, 0-10V, cascadable, system software, software update, remote maintenance. The decisive advantage: "The SDA290 represents the current state of the art and guarantees you future security for many years!

Field(s) of use:

...

Version:

Windows / Android

Product-ID:

15887 /9457

SAV250 audio center

Discription:

Professional mixing amplifier with 4 XLR microphone inputs and 2 RCA line inputs. In addition to the extremely attractive pricing, the amplifier is characterized by a maximum of reliability and flexibility. Integrated 9-band room processor, optional: fully automatic volume control and electronic feedback suppression available. The electronic control modules ensure excellent speech and syllable intelligibility. Electronically monitored protection circuits for short circuit, mismatch, overtemperature etc. Loudspeaker outputs: 100 V, 70 V and 8 Ohm Output power: 250Watt

Field(s) of use:

...

Version:

Silver/Black

Product-ID:

14265

SDV2200 Digital-power emplifier 100V/8Ohm (2)

Discription:

Stereo digital power amplifier 2x 200W / 4 Ohm / 100V Class D amplifier with system monitoring with protection circuit. Frequency response: 20 Hz - 25 kHz / 4 Ohm Frequency response: 95 Hz - 17 kHz / 100V LED indicators: Signal, Clip, Protect signal-to-noise ratio: > 100 dBr Inputs: 2x balanced XLR Dimensions (WxDxH): 482mm x 327.1 mm x 44 mm Weight: 7,8 kg

Field(s) of use:

...

Version:

Silver

Product-ID:

9308

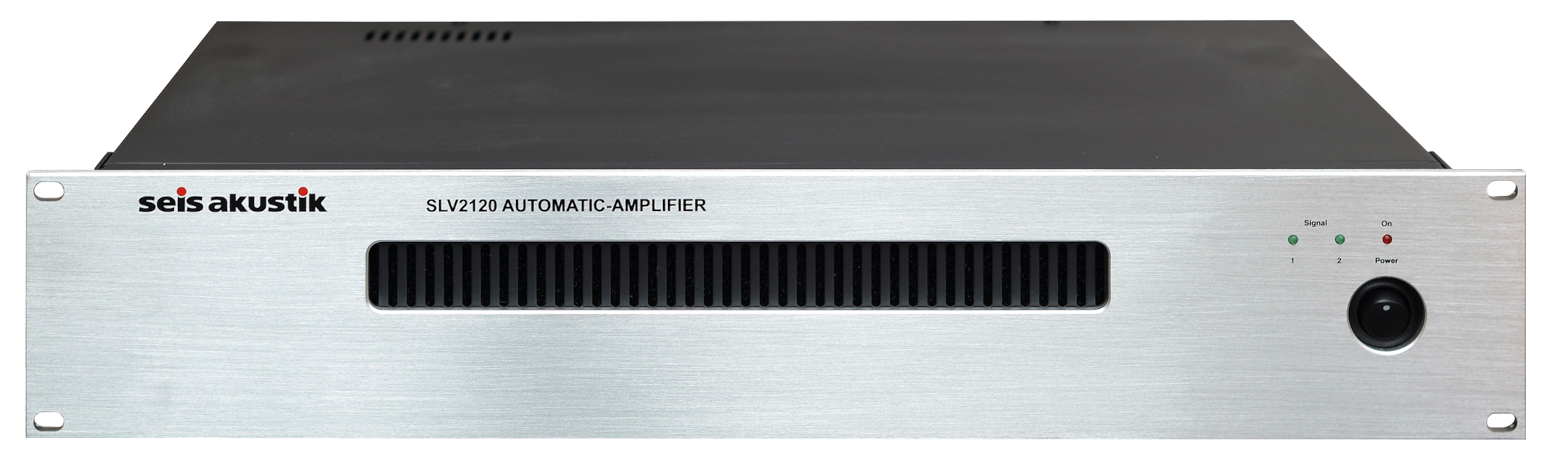

SLV2120 power output stage 100V/8Ohm

Discription:

SLV2120 Professional power amplifier - balanced and unbalanced input (XLR and RCA), continuously adjustable - line output (XLR ) - sine wave output 2X120W - distortion factor 80dB - Speaker outputs 100V, 8 Ohm - Dimensions (WxHxD) 428x132x290mm - Weight 10,2 kg - Colour aluminium - 19" mountable

Field(s) of use:

...

Version:

Silver/Black

Product-ID:

14264

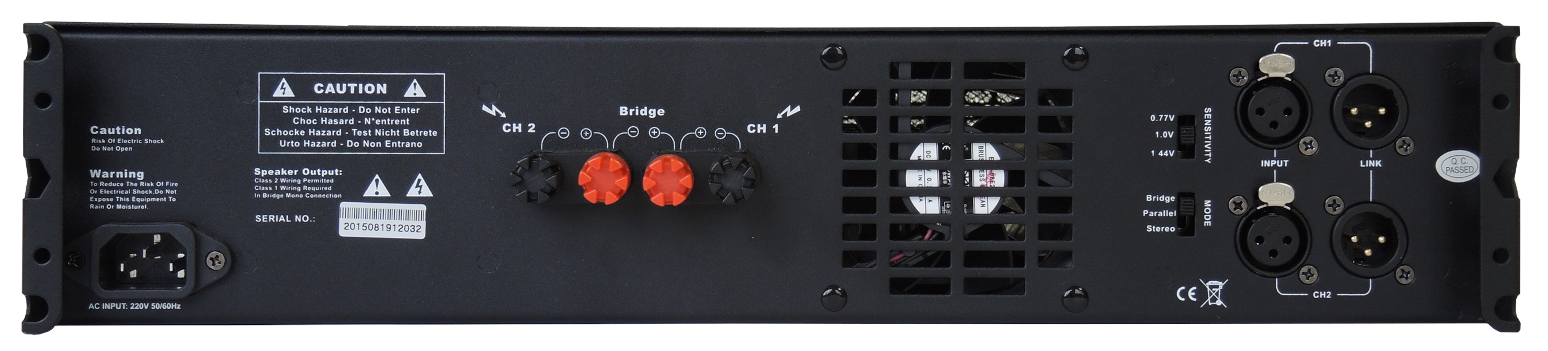

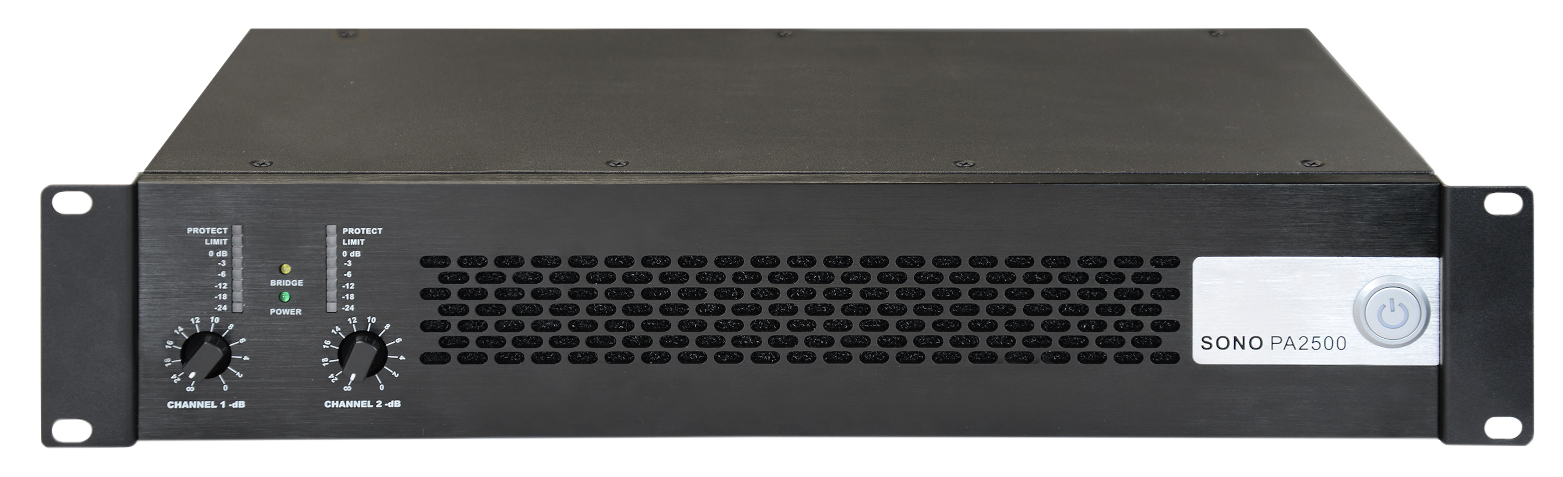

SPA2500 Digitale Leistungsendstufe

Discription:

SPA2500 POWER OUTPUT STAGE DIGITAL Audiophile 2-channel power amplifier with dynamic sound. Pure, open sound structure with high output power with high dynamic. Tube simulation for exceptionally warm sound with high speech intelligibility. 19" version, level control. 20Hz - 40kHz 2 x 750 Watt / 4Ohm Colour: black Dimensions (WxHxD): 48.3 x 8.8 x 26 cm

Field(s) of use:

...

Version:

Black

Product-ID:

9869
